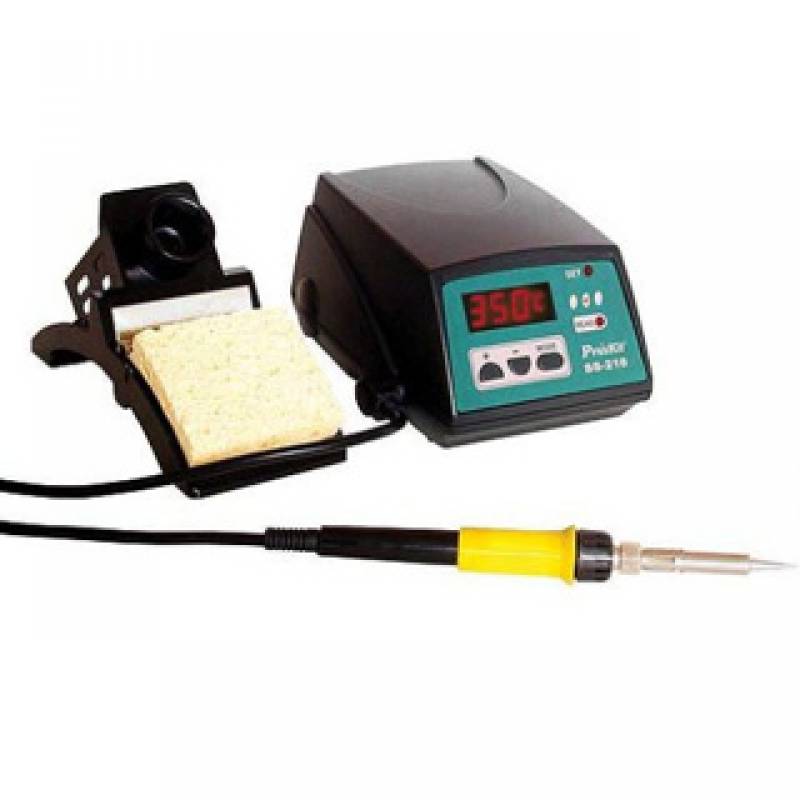

PRO'SKIT SS-218B LEAD FREE SOLDERING STATION 3 IN 1 (50W)-(65W) & (90W)
PRO'SKIT SS-218B LEAD FREE SOLDERING STATION 3 IN 1 (50W)-(65W) & (90W)
SKU:PRO-SS-218A
Three power consumption options (50W/65W/90W)
This soldering station has three power consumption options to allow for use with various pad
sizes and solder diameters. This eliminates the need to change production equipment as
often, thereby reducing time required to change equipment.
· Rapid heat-up and temperature stability
This soldering station is specifically designed for lead-free soldering applications. The
temperature is controlled by precision circuitry (CPU). The temperature drop can be
controlled to less than 25°C (45°F) when used. Idle temperature is maintained at ±2°C
(±3.6°F).
· Touch preheating and sensor in tip
Soldering wand has intelligent "touch" design for preheating 3~5°C (5.4~9°F) in 3 seconds
· The sensor is located in the first 10mm of the tip to ensure temperature stability
(see comparison on other side)
· Separate tip and heater design to reduce replacement cost
The tip and heating unit can be replaced separately for 70% cost savings.
· Heavy duty soldering station
· Auto shut-off function
If the CPU detects no use for 30 minutes, or abnormal condition for 80 seconds, it will shut
off automatically to ensure protection of the unit.
· ESD safe
The machine housing is ESD safe and the tips are certified by SGS for Lead-free soldering
with ground resistance to meet the demand of precise high-tech production.
